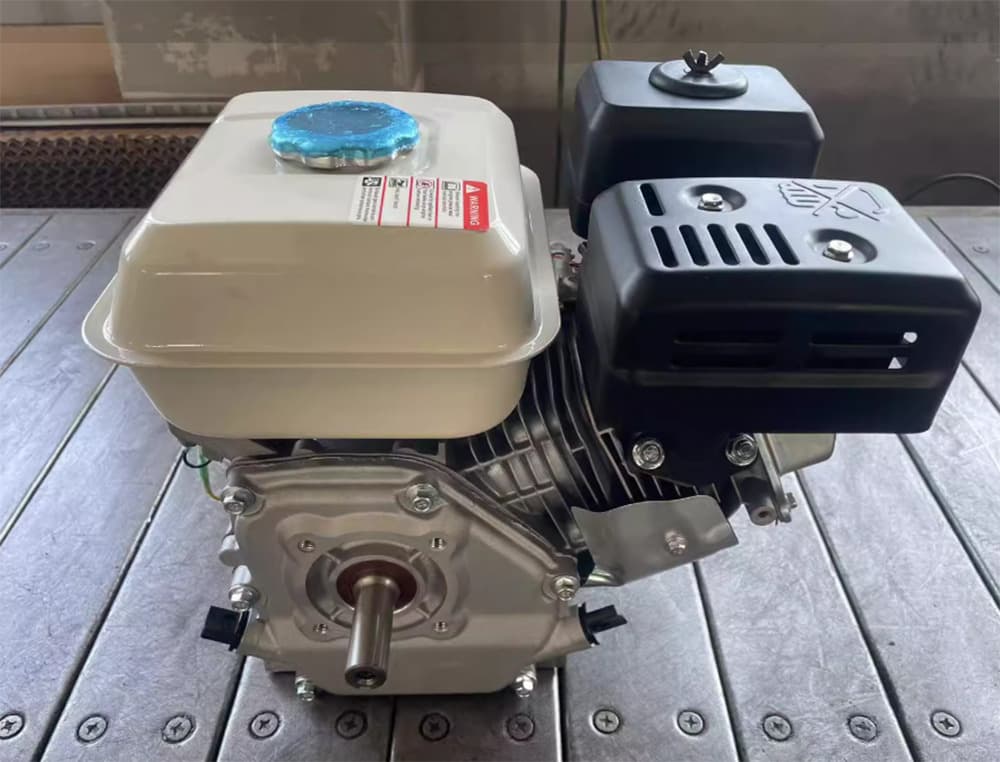

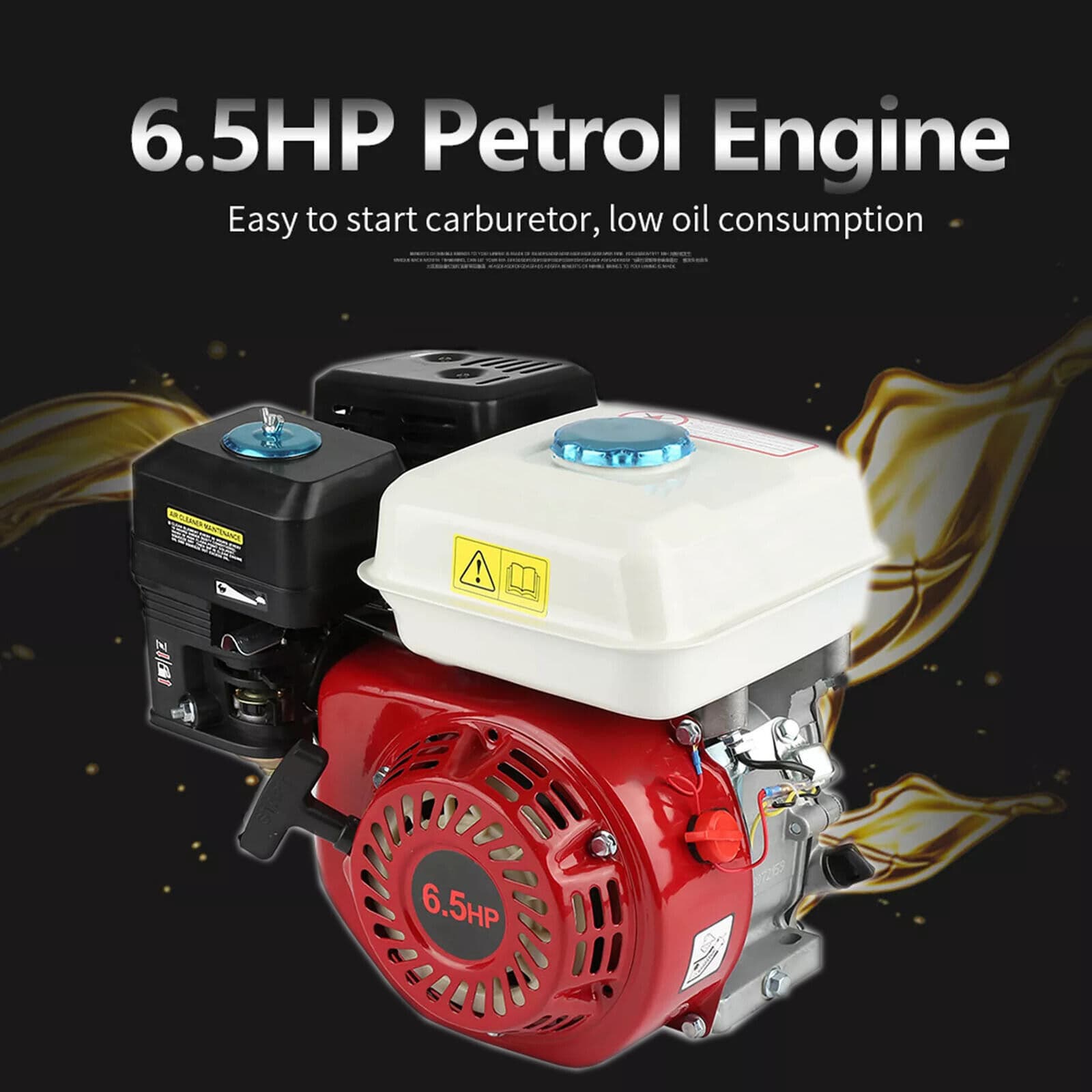

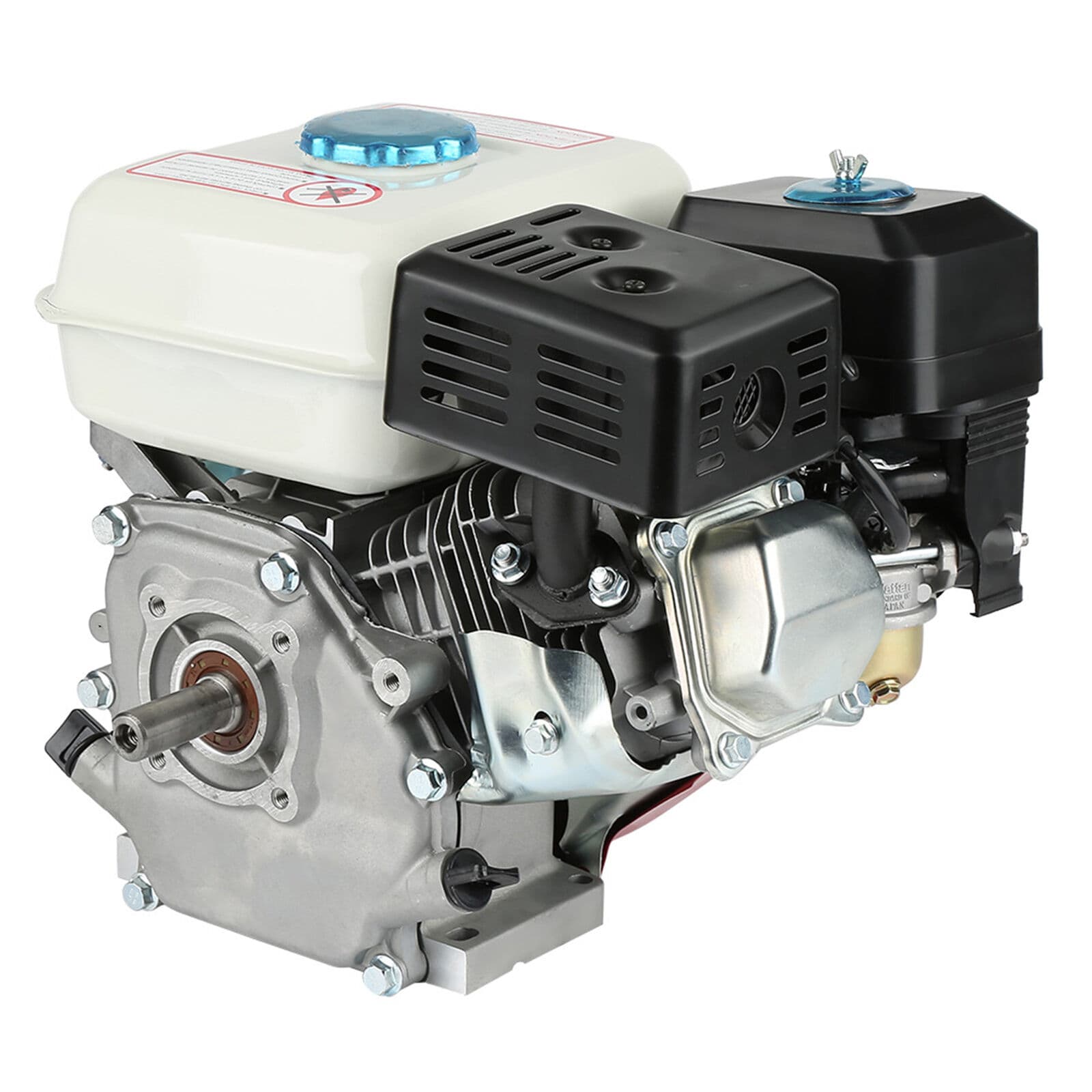

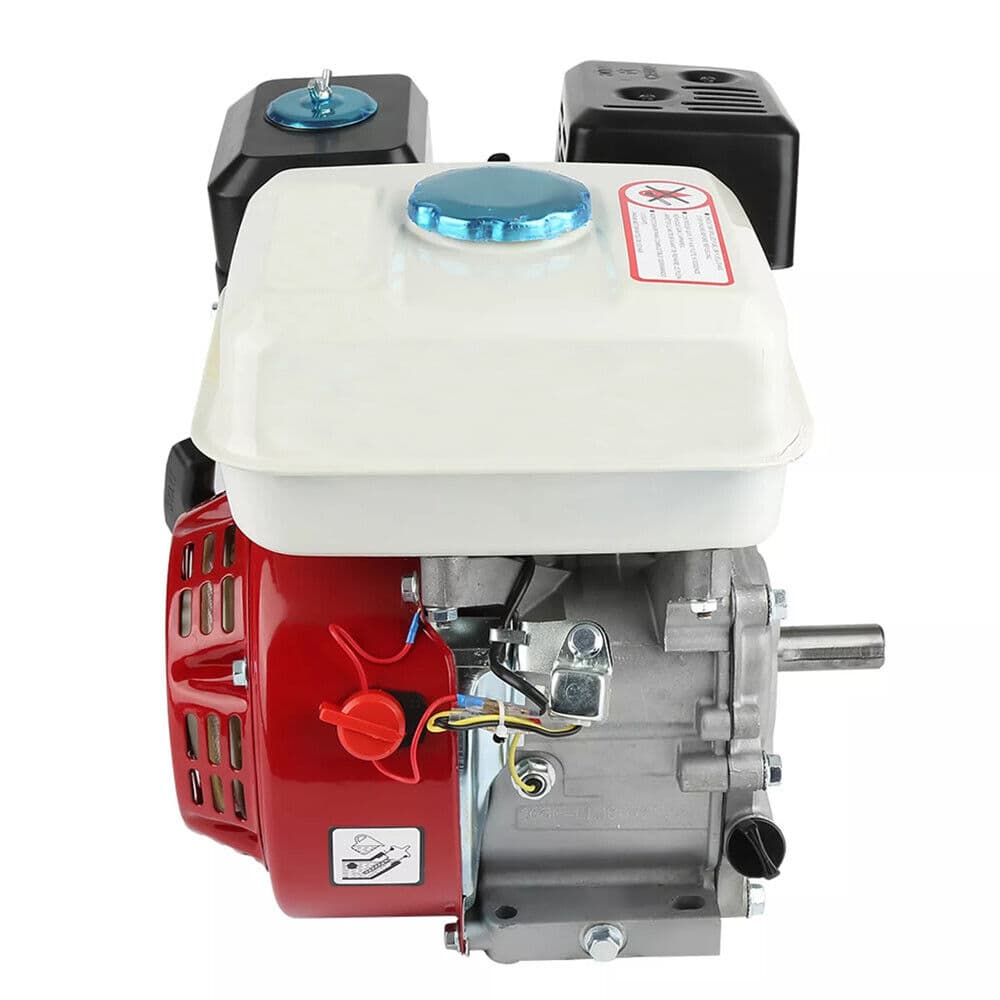

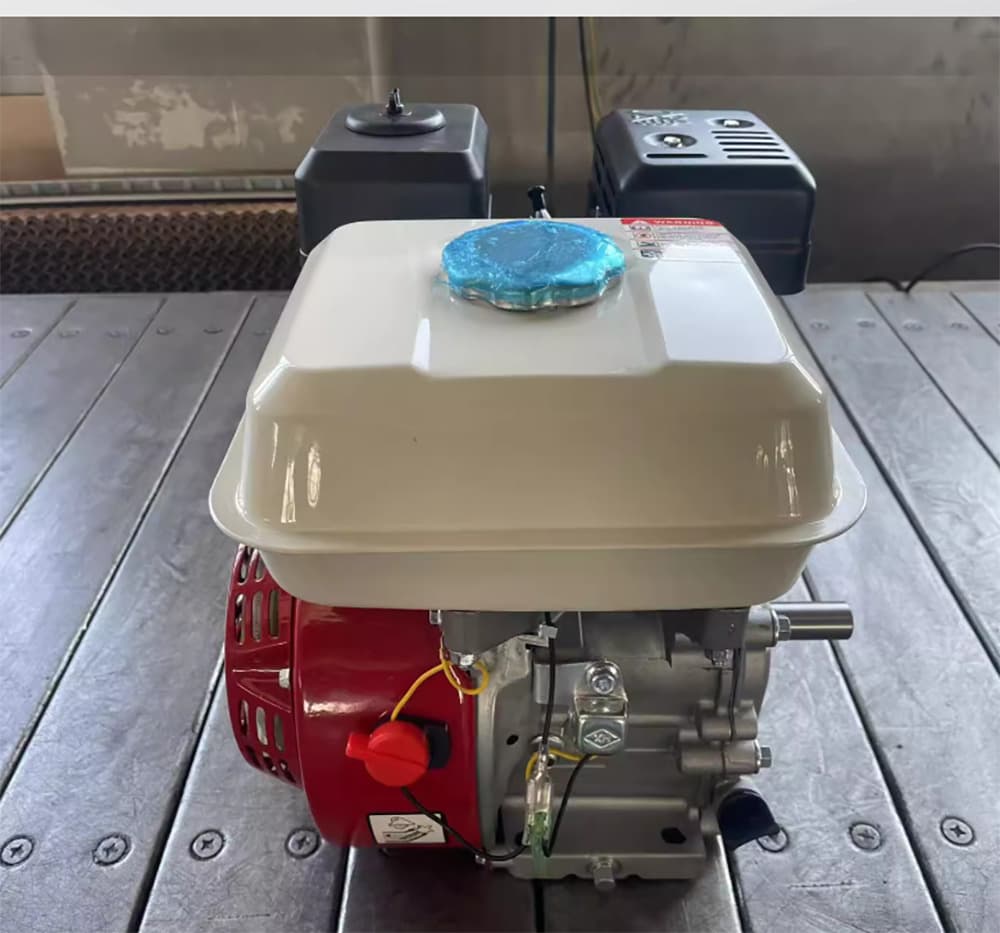

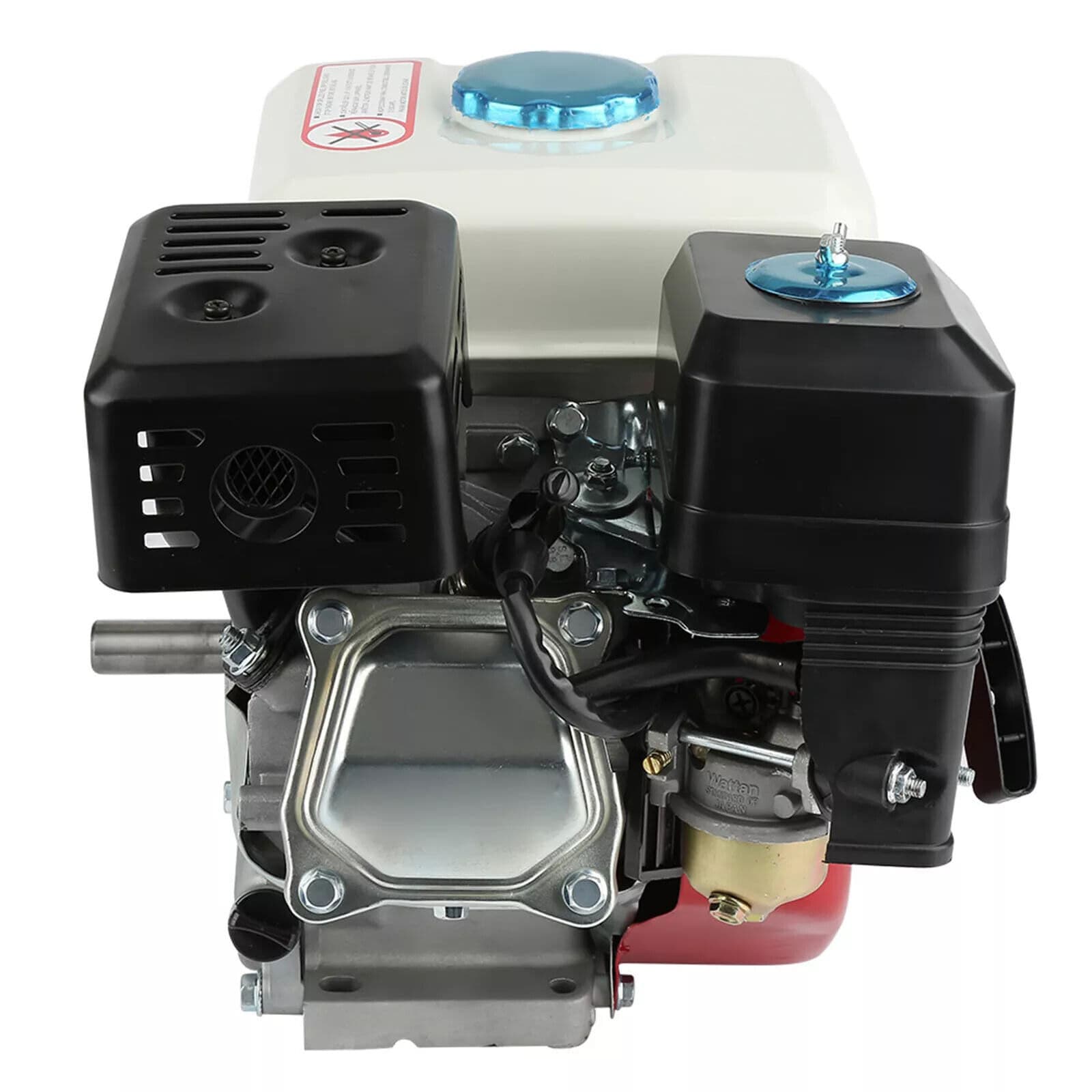

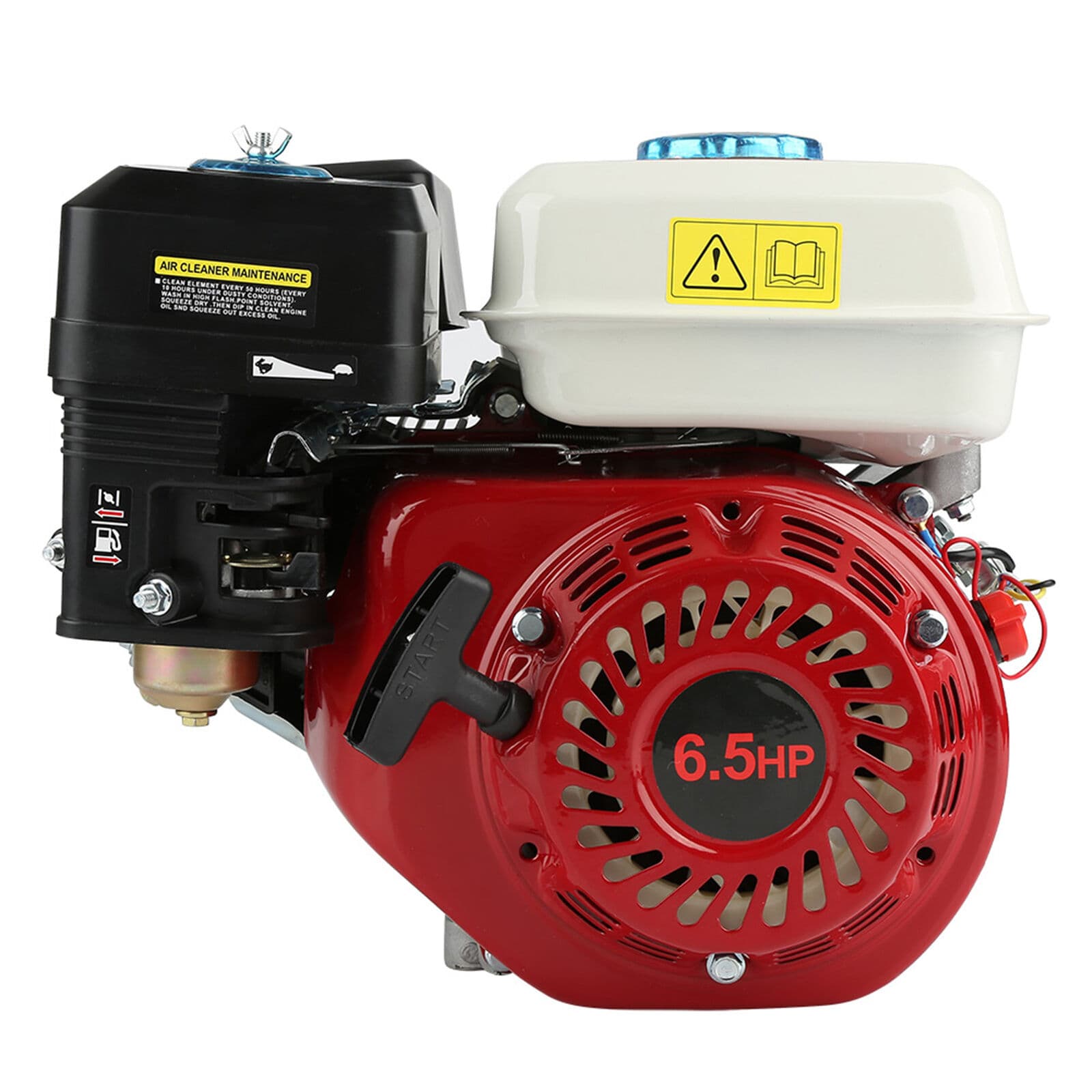

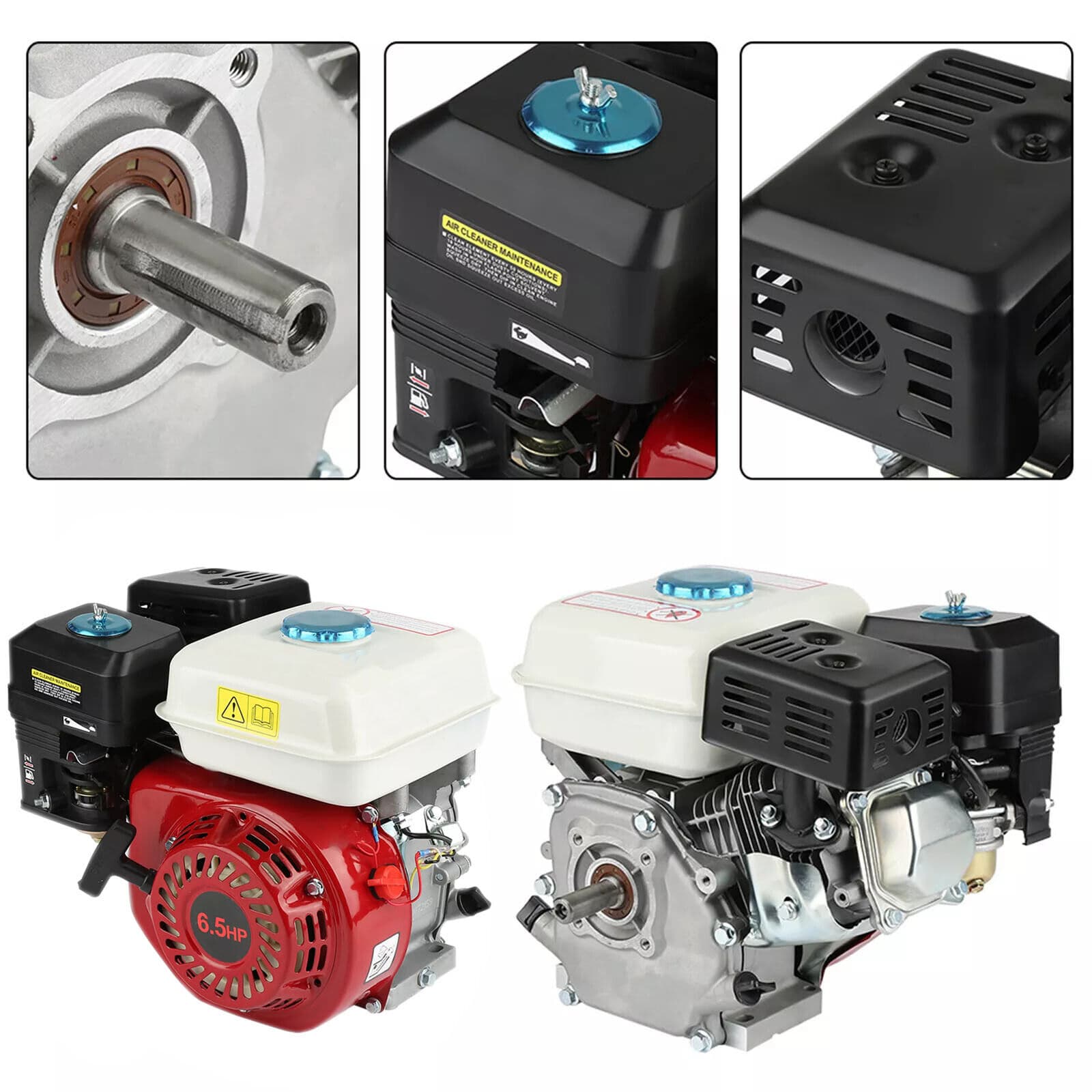

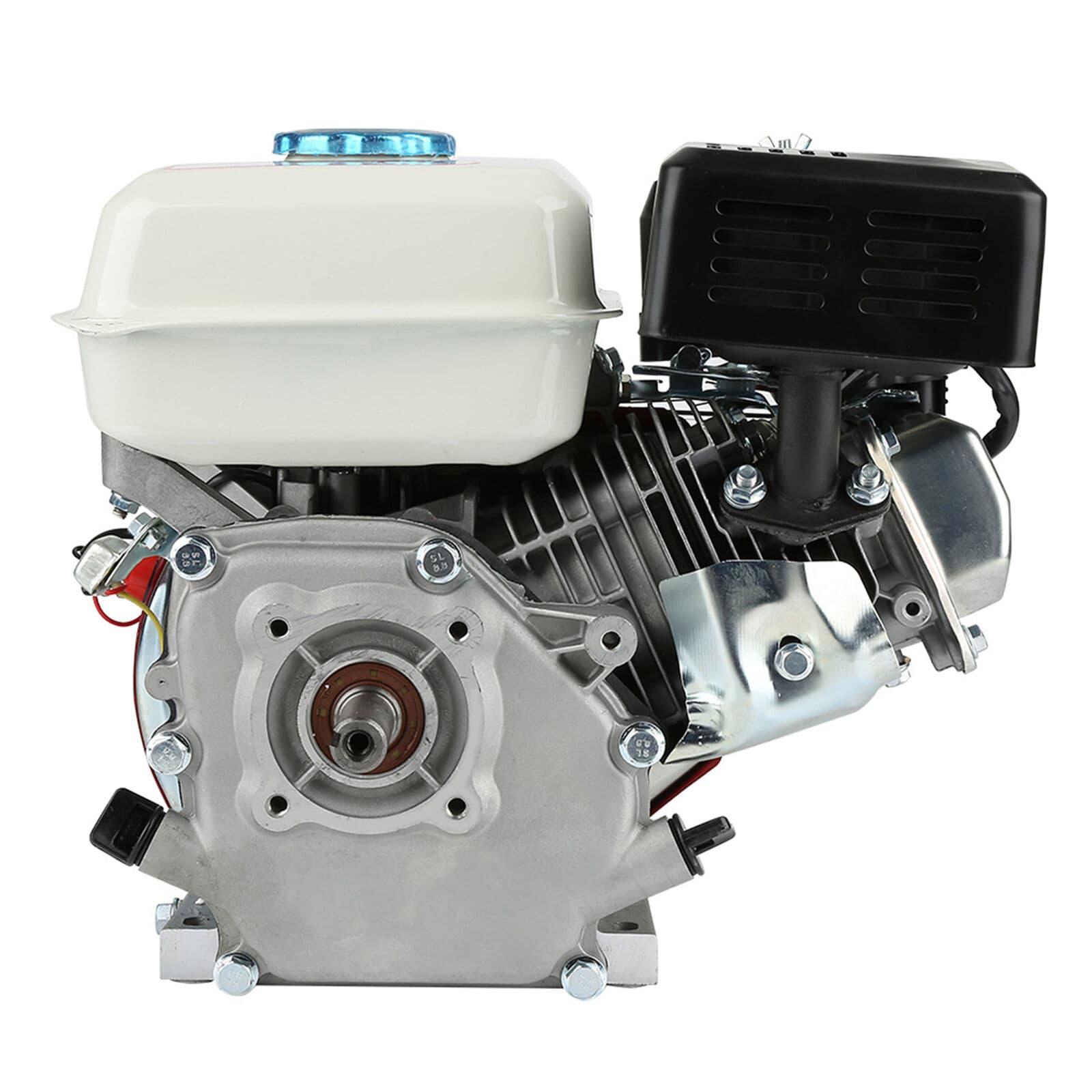

For H Onda GX200 4-Stroke 6.5HP 3.6L Petrol Oil Gas Engine Replacement Engine

Features:

• Easy to start, smooth running with minimal vibration.

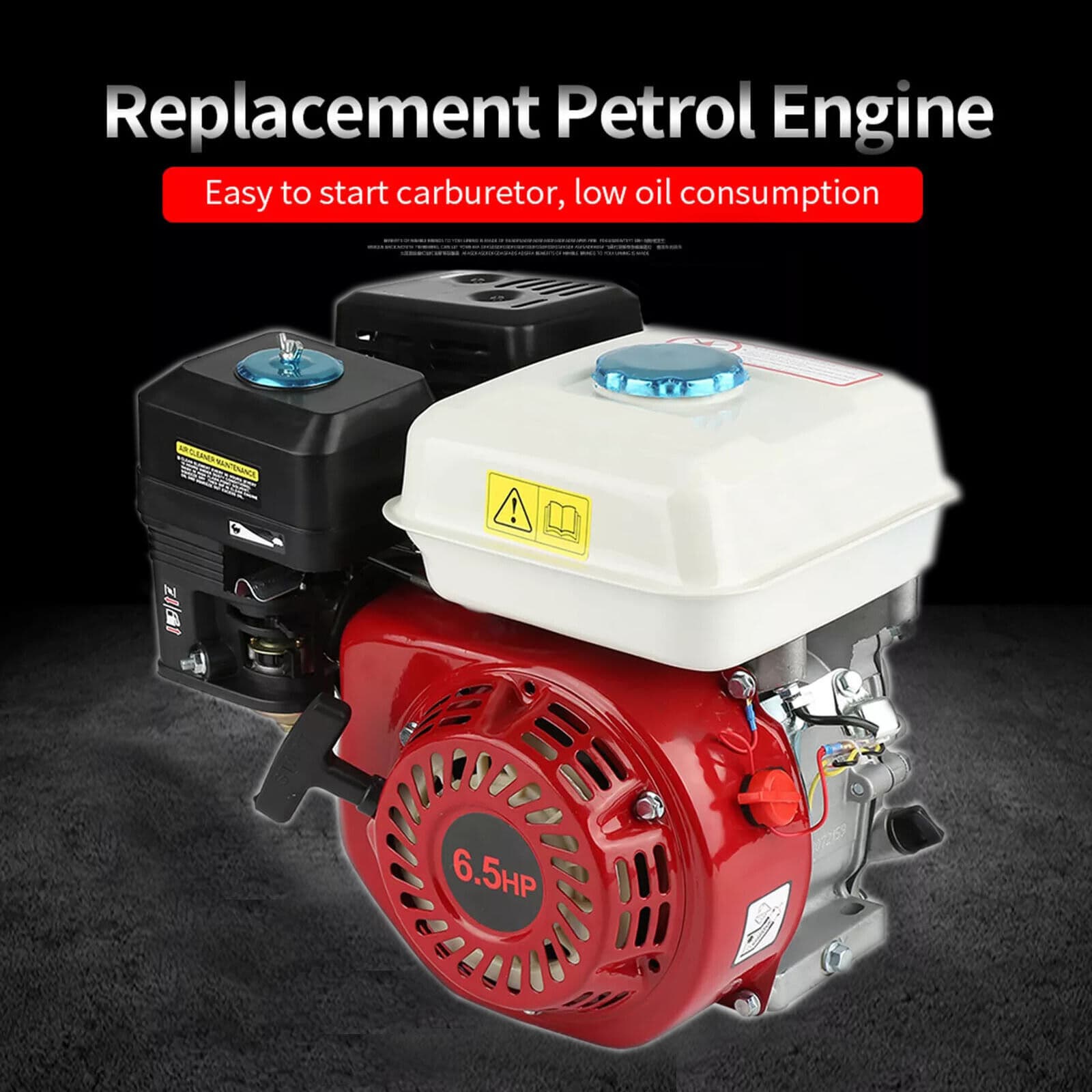

• Easy to start carburetor, low oil consumption.
• The engine with full horsepower, excellent air intake and exhaust effect, lower fuel consumption rate, is widely used in various working environments.
• 3.6L fuel tank, threaded oil tank cover, to prevent vibration from damaging the tank.
• High efficiency, high quality mechanical seal, fast heat dissipation, durable to use.

Specification:
Engine Type: 168F / Air Cooled 4 Stroke OHV Single Cylinder
Bore & Stroke: 68x45mm
Displacement: 196cc
Compression Ratio: 8.5:1
Maximum Output: 6.5HP / 4.8KW
Rated Output: 4.0HP / 3.0KW
Starting System: Pull start
Engine Oil Capacity: 0.6L
Fuel Capacity: 3.6L
Air Cleaner : Semi Dry
Drive Shaft Diameter: 20mm / 0.786inch
Length of Drive Shaft :50mm/1.97inch
Keyway Diameter: 5mm
Engine rotation: Anti clockwise
Size: Approx. 35 x 32 x 26cm/13.7 x 12.5 x 10.2inch
Weight: Approx. 13800g / 486.8oz

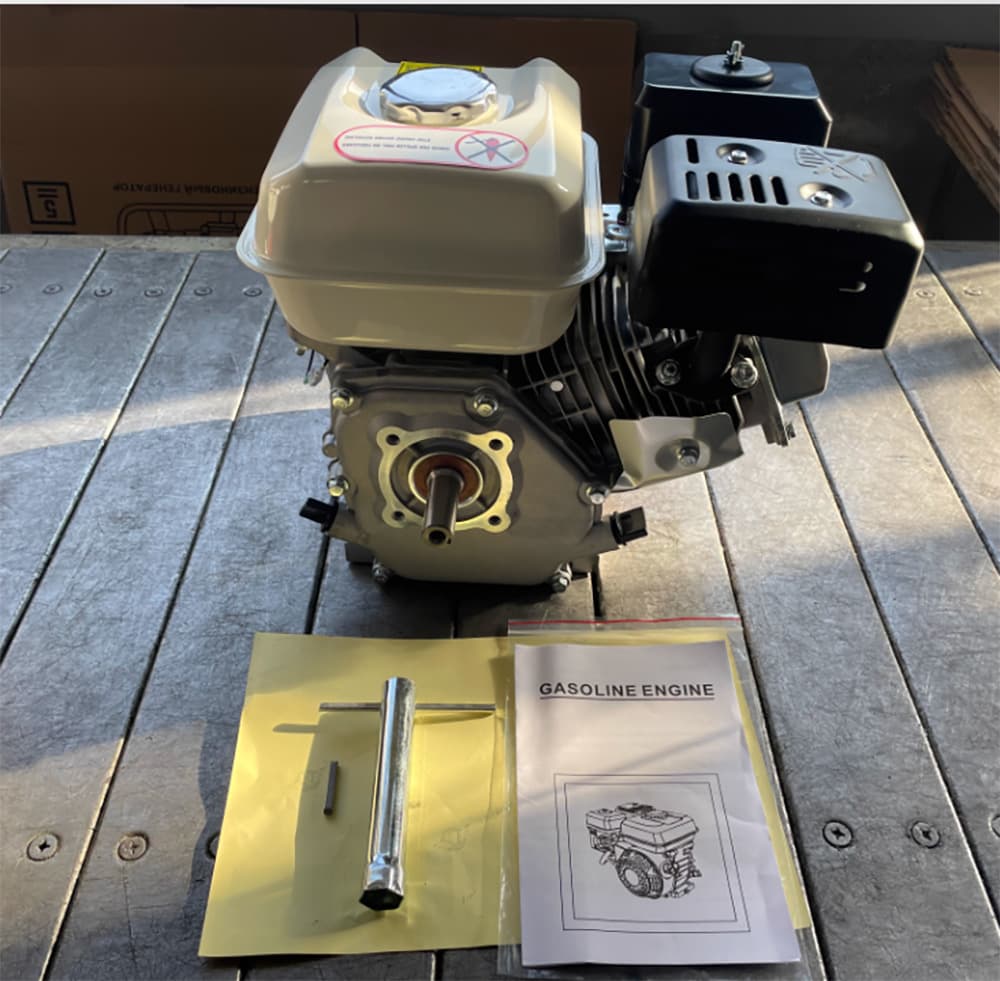

Package List:

1 x Petrol Engine

3 x Accessory

1 x User Manual
